Fig. 2
Download original image

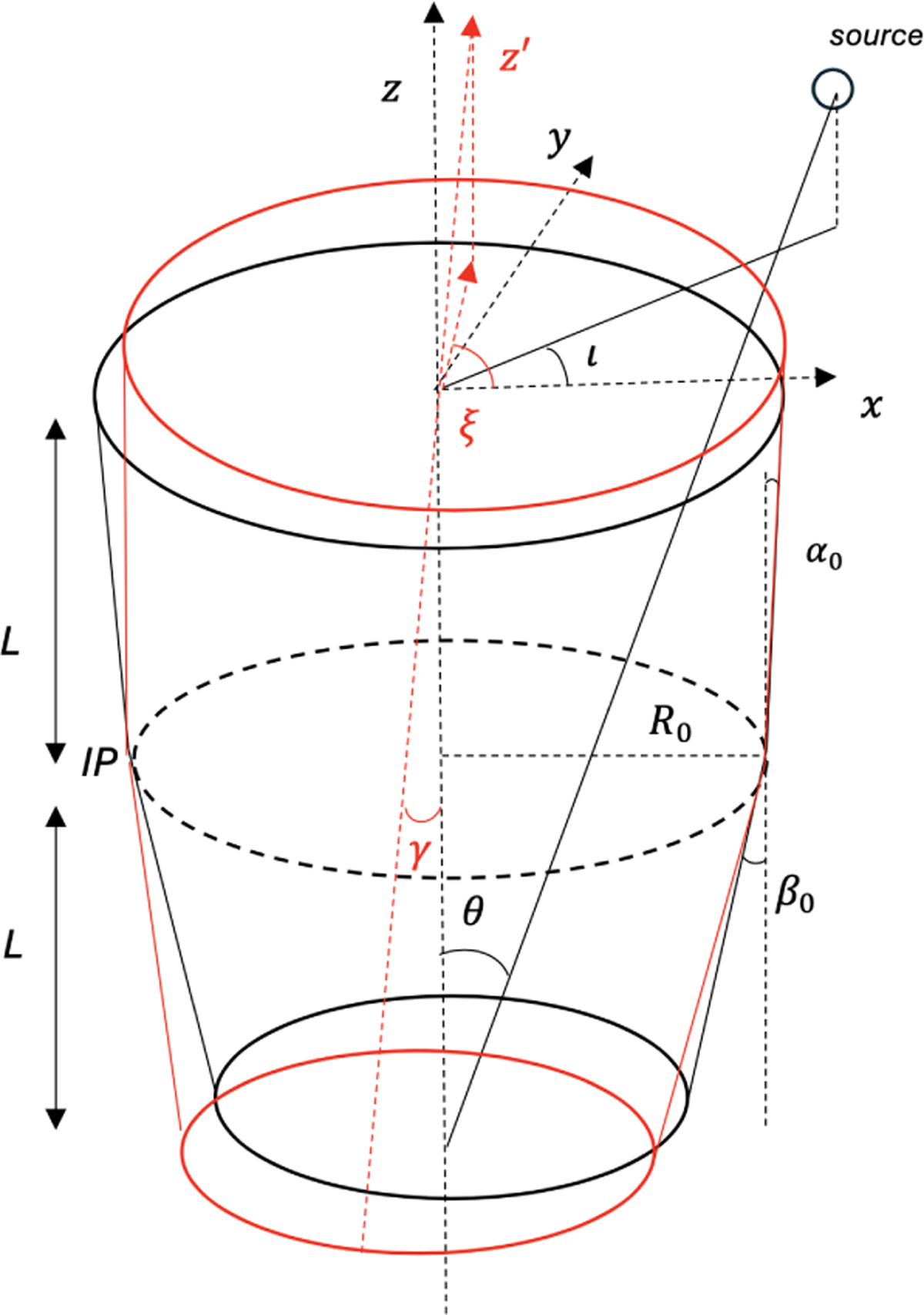

Representation of a sketch of a tilted optical axis. The tilted shell orientation is specified by the angles γ and ξ, in cylindrical coordinates. The source direction is specified by the angles θ, ι in the same reference frame.
