Fig. B.2
Download original image

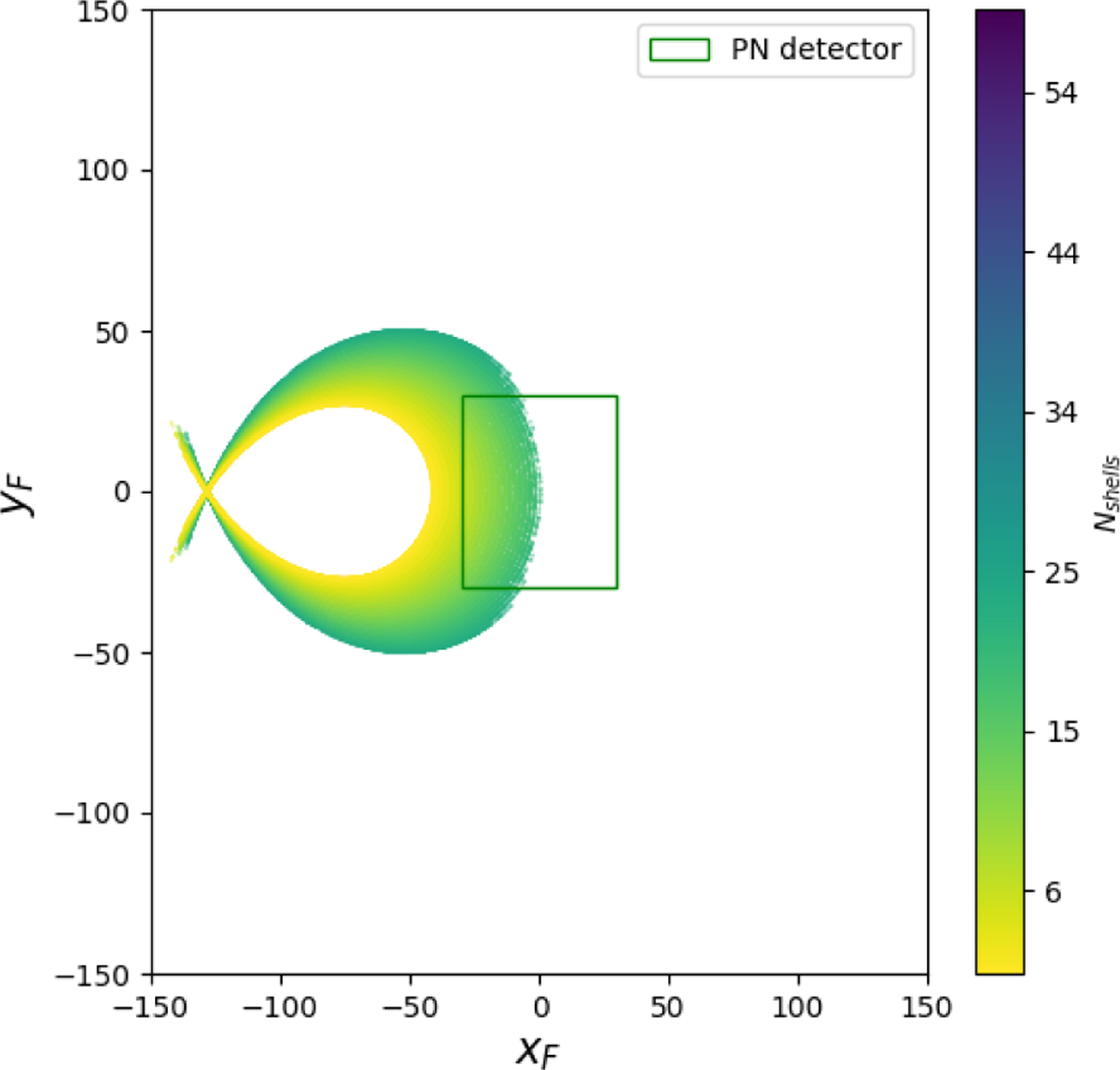

Correspondence between the position of the arc and the shell. Shells with larger R0 are responsible for the arcs along the negative direction, −x, while shells with lower radii produce arcs that do not intersect the detector. The coordinates of this plot refer to the (x,y) focal plane in millimeters.
