Fig. B.1

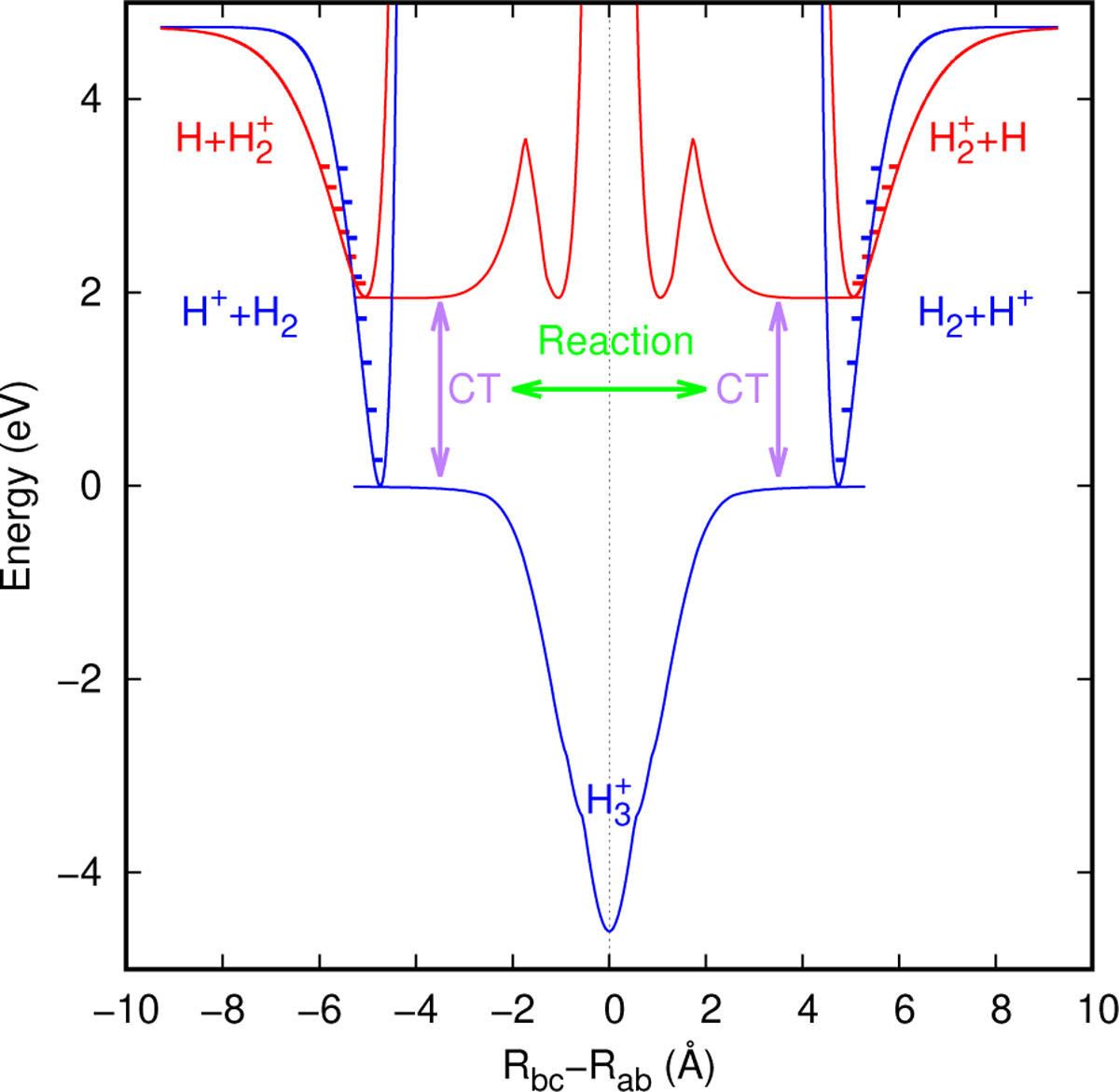

Minimum energy path of the two lower adiabatic singlet electronic states of the $H_{3}^{+}$ ${\rm{H}}_3^ +$ system, correlating to H₂ + H⁺ (ground) and $H_{2}^{+} + H$ ${\rm{H}}_2^ + + {\rm{H}}$ (excited). Vibrational levels of diatomic fragments are indicated in blue (H₂) and red ( $H_{2}^{+}$ $\left( {{\rm{H}}_2^ + } \right)$ ). The CT processes are described by electronic transitions between the two electronic state. Reaction only occurs in the ground electronic state.
