Fig. 4.
Download original image

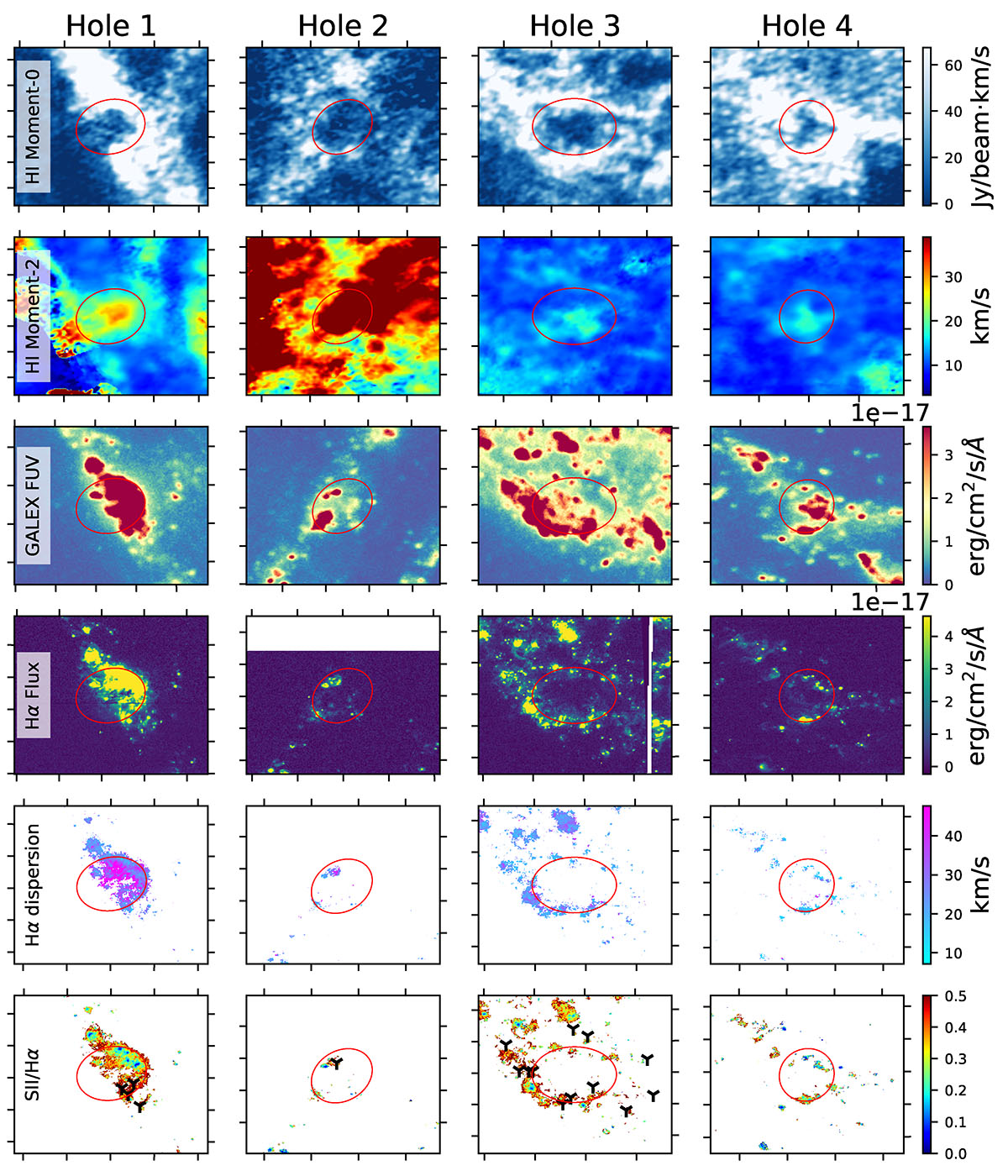

Multi-wavelength views of the four biggest sites of galactic fountains in M101 marked by red ellipses. From top: H I velocity map overlayed with its 5th and 95th flux contours in black; H I velocity dispersion; FUV flux map; Hα flux map; Hα velocity dispersion map; the ratio of [S II] to Hα flux overlayed with the positions of optically identified SNRs by Matonick & Fesen (1997) in black symbols.
