Fig. 1
Download original image

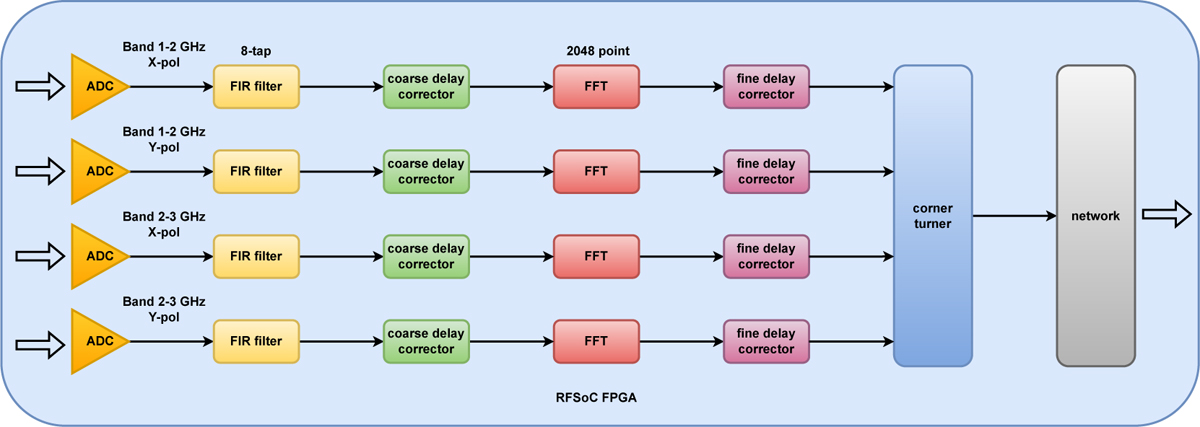

Dataflow diagram of the F-engine design. The dual-band and dual-polarization voltages are digitized by ADCs and then processed sequentially by the 8-tap FIR filter, coarse delay corrector, FFT block, and fine delay corrector. The four data streams are then merged and transposed in the corner turner before being packetized and transferred through the 100G network interface.
