Fig. D.1.
Download original image

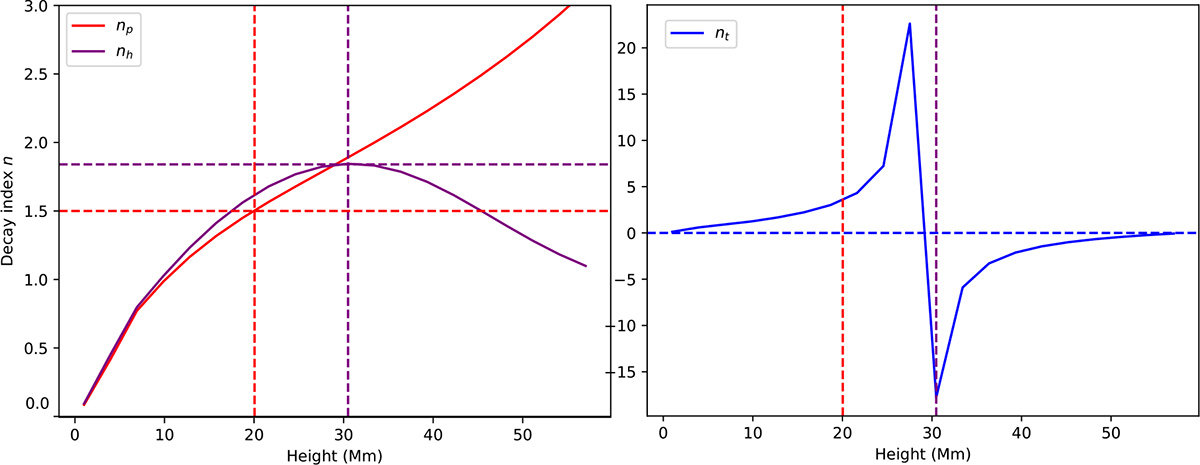

Profiles of the poloidal-field decay index (np; red), toroidal-field decay index (nt; blue), and total horizontal-field decay index (nh; purple), derived from the corresponding poloidal (Bp), toroidal (Bt), and total horizontal (Bh) magnetic fields. The vertical red and purple lines indicate the heights of np = 1.5 and the maximum nh = 1.84, respectively.
