Fig. 3.


Download original image

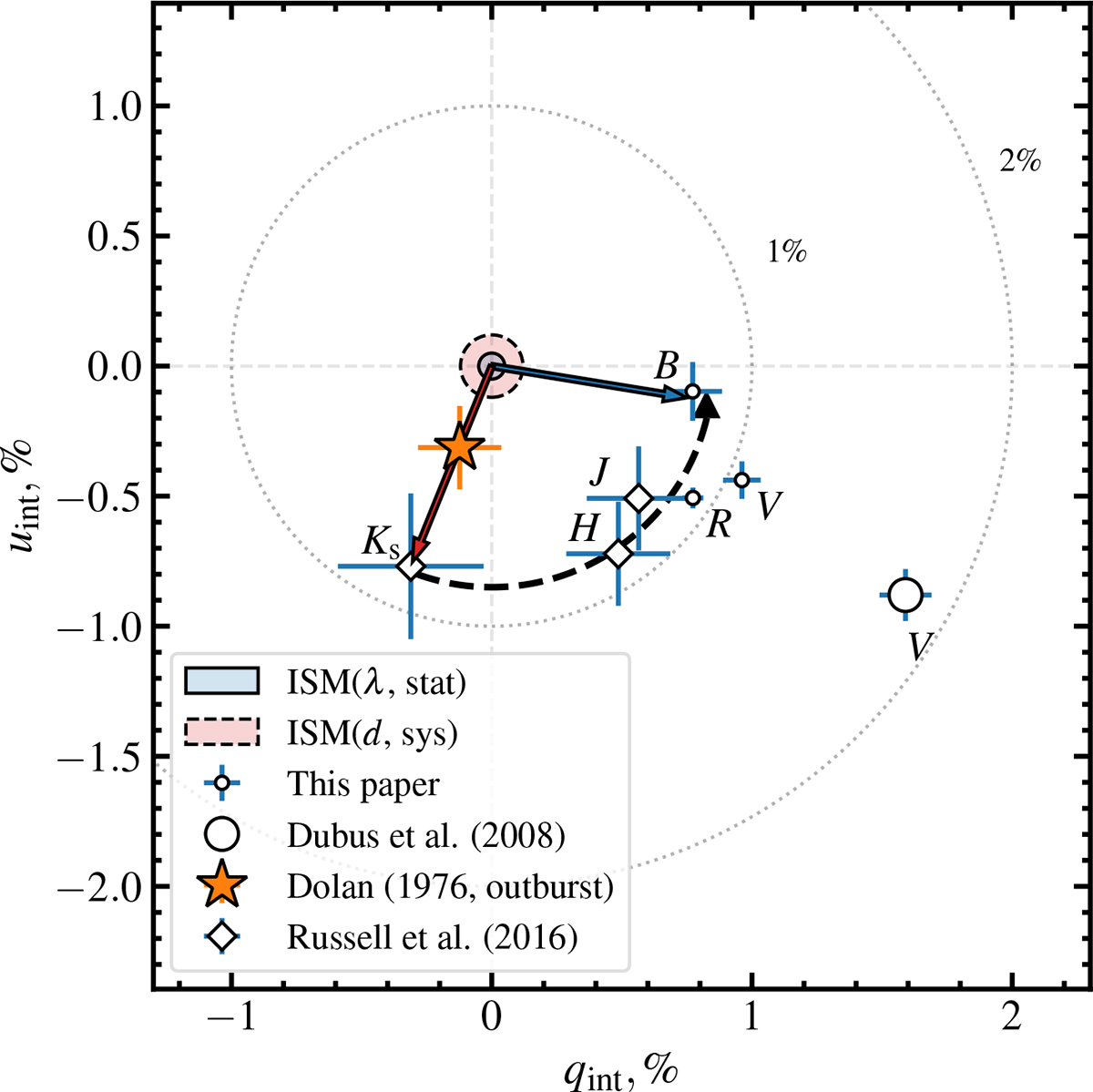

Intrinsic Stokes parameters of the polarization of A0620−00 in quiescence measured in different filters from the Ks to B, as indicated by letters near each data point. The light blue circle at the origin illustrates the possible uncertainty of the IS polarization with wavelength, σis, λ; the light red circle shows the systematic error on the IS polarization zero point, σis, sys. The red and blue arrows indicate the intrinsic polarization vector directions in the Ks and B bands, respectively. The dashed curved arrow shows the track left by the intrinsic polarization vector during its rotation from the IR to the blue part of the spectrum. An orange star shows the polarization of A0620−00 in V measured during the 1975 outburst by Dolan (1976).
